Technology

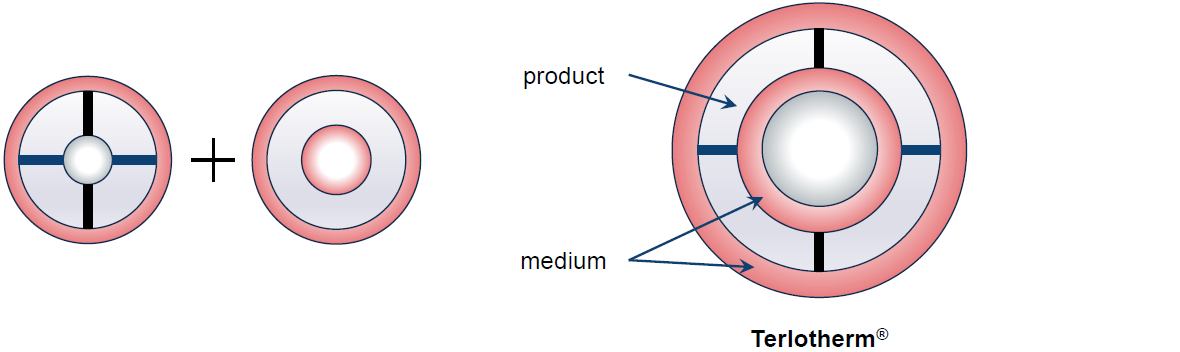

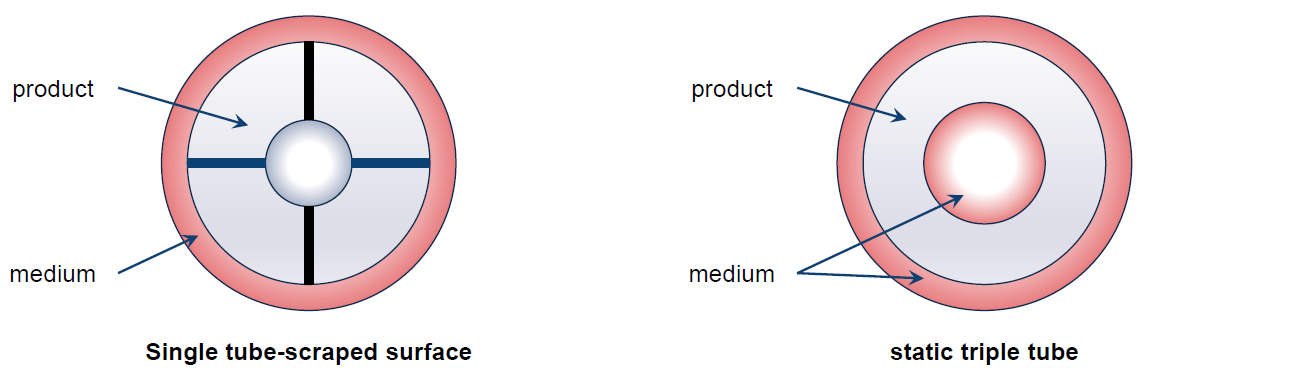

Combines the advantages of conventional SSHE and tubular
Executions

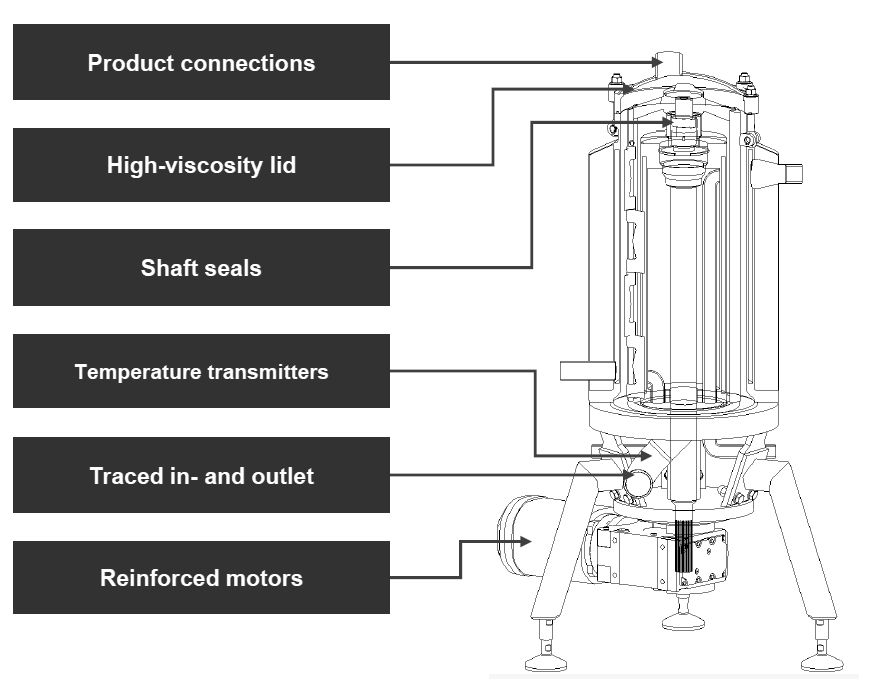

A Terlotherm for every application!
Thanks to a variety of options the Terlotherm can be configured to your needs and the needs of your products.
A small insight in the options:
Module examples
Terlotherm modules and system integration
From a single machine for heating or cooling with local automation, up to a complete pasteurization system, ProXES is your reliable partner
Terlotherm & buffer skid
- Buffer tank
- Piping and instrumentation
- Controls
- Flow plate
- CIP connections

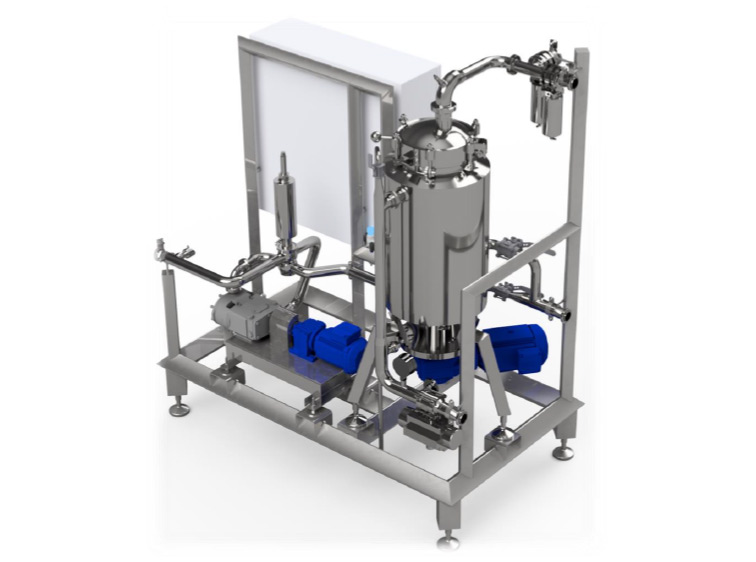

Terlotherm cooling skid
Plug-and-play flexible cooling unit with:
- Product pump
- Piping and instrumentation
- Controls
- CIP connections

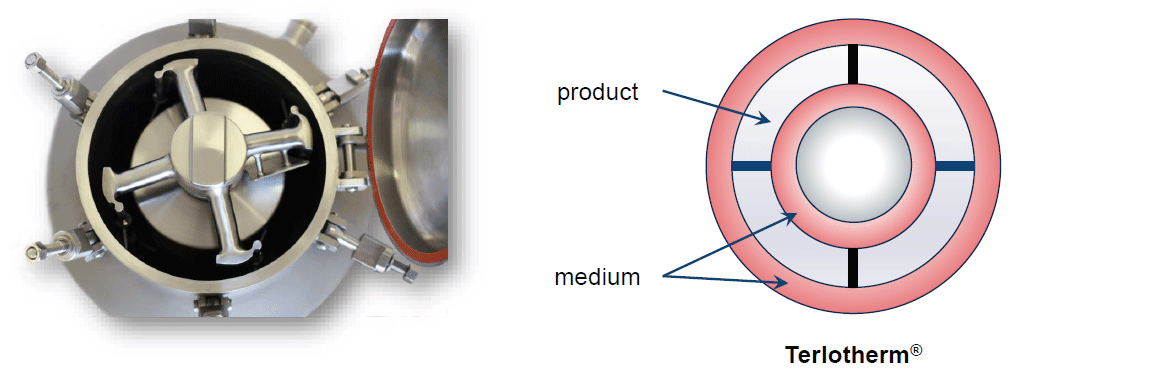

- Double wall cylinder ensure efficient heat exchange on a small footprint
- Efficient heat exchange due to continuous scraping of the entire heat exchange surface

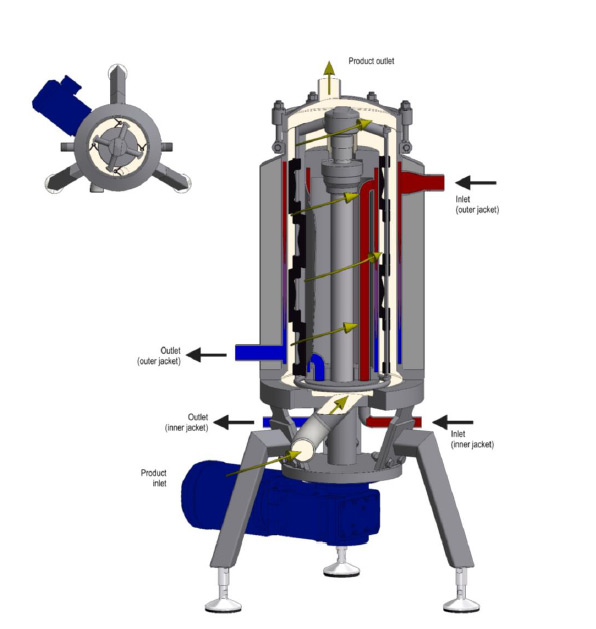

- Product flow upward to ensure consistent retention time
- Medium in counterflow for maximum efficiency
- Low pressures and low rpm
Design
- Large range, for most processes only one unit needed
- One mechanical seal construction means less spare-parts costs
- Low pressures and rpms due to Terlotherm design causes low wear and long uptimes

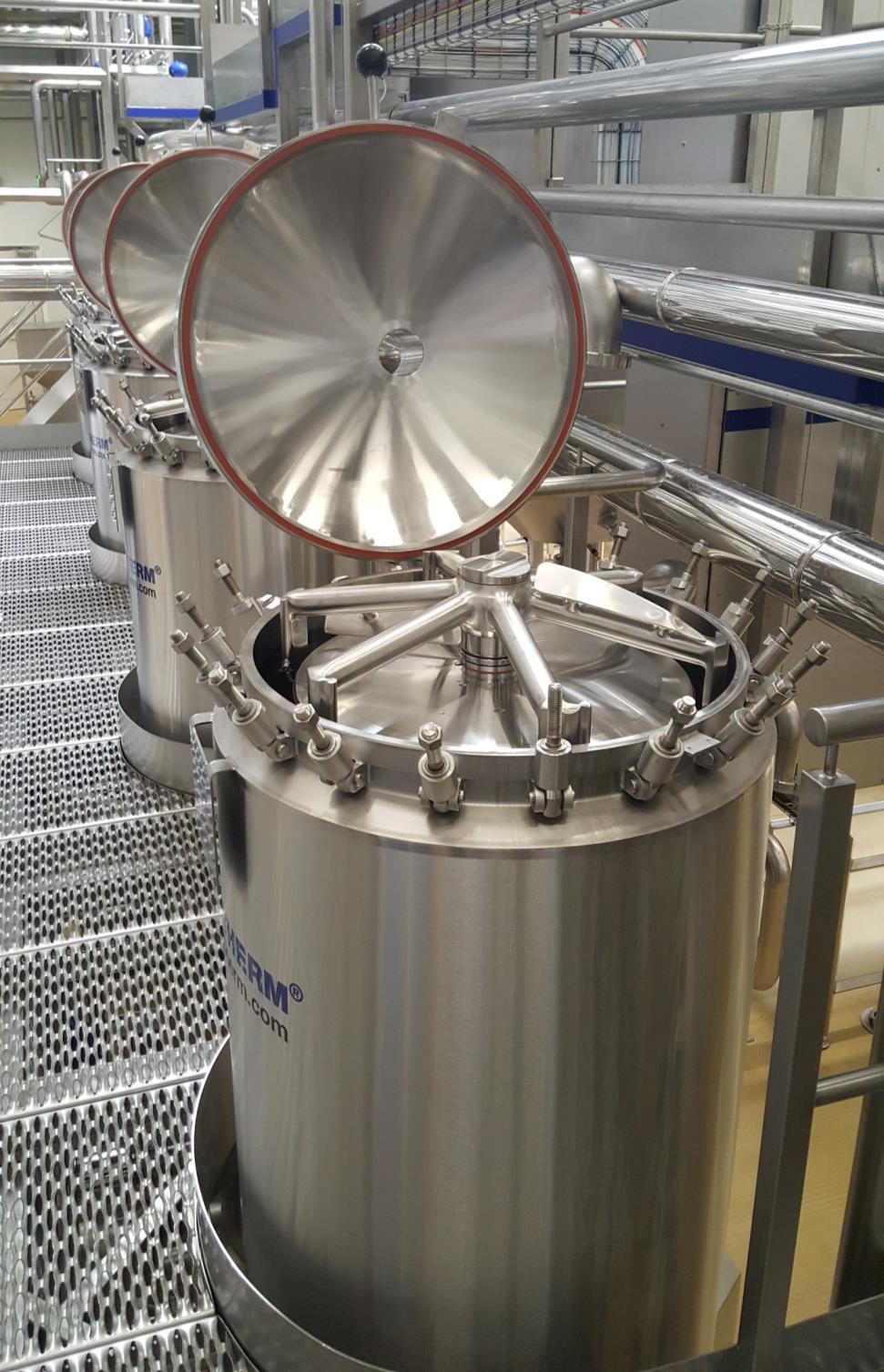

- Simple access and inspection via the top lid, without seal disturbance
- Both inner and outer cylinder can be dismantled for refurbishment or replacement
Key benefits - process
Optimum product quality
- Ideal for viscous products
- Gentle handling of heat and shear sensitive products
- Low pressures ensure gentle processing
- For products with particles up to 1” (2,5 x 2,5 cm)
High food safety
- X-Ray and metal detectable scrapers and gaskets
- Bottom driven (no oil contamination)
- Suitable for aseptic processing
Key benefits - technical
High quality equipment
- USDA, U-Stamp, PED, ASME codes approved
- Product wetted parts out of stainless-steel Duplex
- All product contacting parts FDA approved material
Low operating costs
- Energy efficient
- Only one mechanical seal
- Longer uptime due to low pressures and rpm
- Simple inspection via the top lid
- Design ensures simple and fast maintenance
